Next-Generation Ten BA Drivers IEMs

  • Ten BA Drivers
  • About "Carmen's" Next-Generation BA Drivers
  • Handcrafted Medical-Grade Resin Construction
  • New HFI Upgraded Cable
Regular price $849.00
Sale price $849.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery:Apr 04 - Apr 08

  • Free Standard Shipping & Returns On all orders. Check if your country applies.

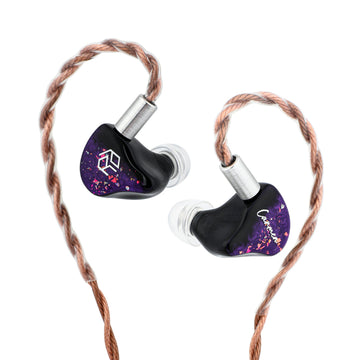

Yanyin Carmen

Yanyin Carmen

Introducing the latest model from Yanyin Technology, the Carmen. Equipped with a ten BA (balanced armature) four-way configuration, Carmen is the newest Yanyin flagship in pure BA driver monitoring, developed through extensive research and building on the success of their Moonlight series tuning.

Ten BA Drivers

The Carmen is equipped with ten balanced armature drivers. For the low frequencies, it uses four Sonion drivers, which overcome the typical limitations of balanced armature bass response. This configuration offers the energy and impact of dynamic drivers, paired with the excellent transient response and texture characteristic of balanced armatures.
In the midrange, two Sonion drivers deliver a rich and smooth tonal quality, maintaining a consistently impressive sound. The high frequencies are handled by two full-size Sonion drivers, ensuring high-quality reproduction with a pleasant smoothness. Additionally, a custom dual driver is dedicated to the ultra-high frequencies, enhancing extension, resolution, overall sound layering, and soundstage.
Overall, the combination of these Sonion drivers across the frequency spectrum creates a highly refined audio experience, with a seamless blend of powerful bass, lush mids, and detailed highs.

About Carmen's Next-Generation BA Drivers

Carmen features phase synchronization compensation technology, a rare and challenging feat in multi-BA setups. Our extensive research experience allowed us to achieve exceptionally low distortion and balanced frequency response, ensuring clear separation and seamless integration across the frequency spectrum. This results in highly accurate sound reproduction.

Handcrafted Medical-Grade Resin Construction

The handcrafted design uses medical-grade resin, combining purple hues with a starry theme to create a striking and charming aesthetic, embodying the exotic allure of the Georges Bizet opera “Carmen”.

New HFI Upgraded Cable

Standard with 0.78mm 2-pin CIEM connectors, the upgraded cable features new hardware plugs and a splitter. Available in 3.5mm (with optional 2.5mm & 4.4mm) configurations, the high-quality single crystal copper cable consists of four strands, single crystal copper, 22AWG, and 140 cores.

Free Standard Shipping

We Offer FREE Standard Shipping on all orders to Most of the World*

1 Year Warranty

Your Headphones, IEM's, AMPs and DACs, are covered by a warranty against factory defects.

Authentic Products

HiFiXAudio is an official distributor of the brands we carry. All products are genuine.

Brand
Yanyin
Cable
TYPE4 Single Crystal Copper, Single Strand 22AWG, 140 cores
Shell
Custom Medical-Grade Resin
Driver
20 Balanced Armature Drivers (10 per side)
Crossover Technology
4 electronic crossovers + 4 physical duct crossovers
Sensitivity
109dB
Frequency Response
5Hz-25kHz
Impedance
10Ω@1kHz
Passive Noise Isolation
26dB
