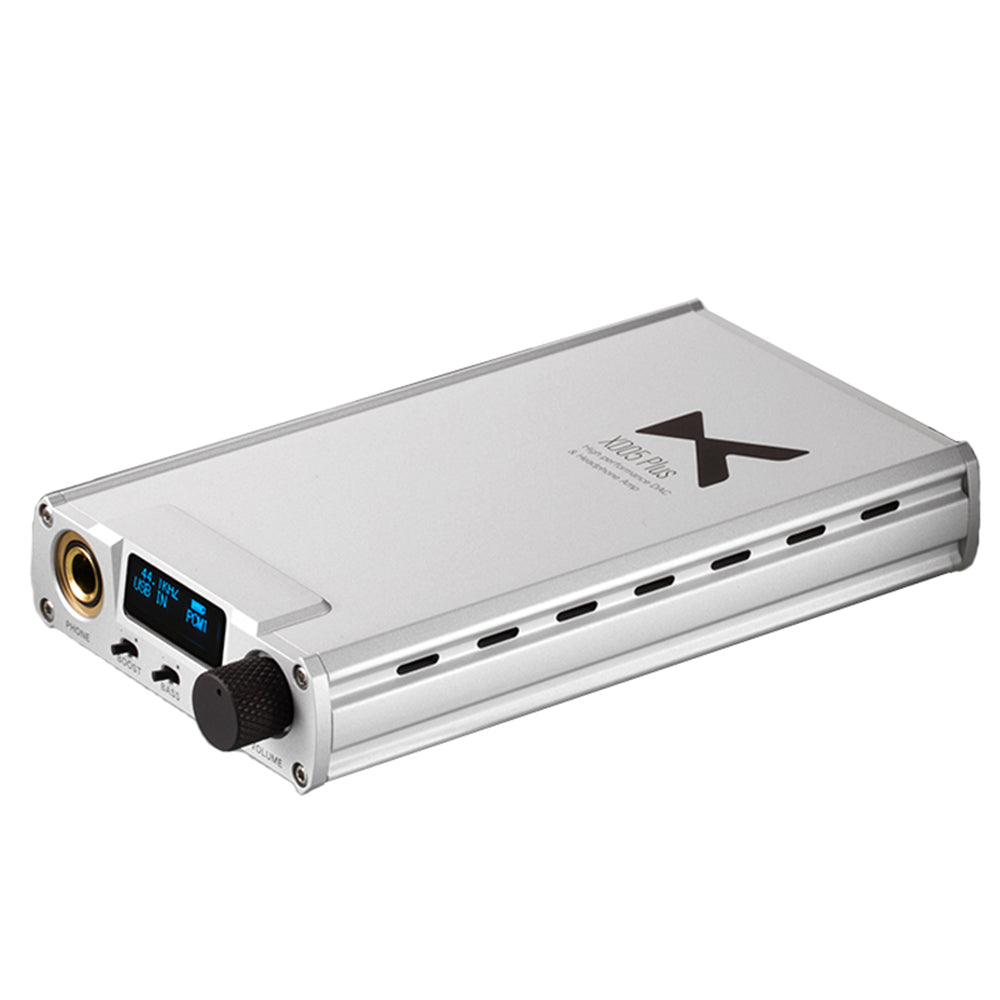

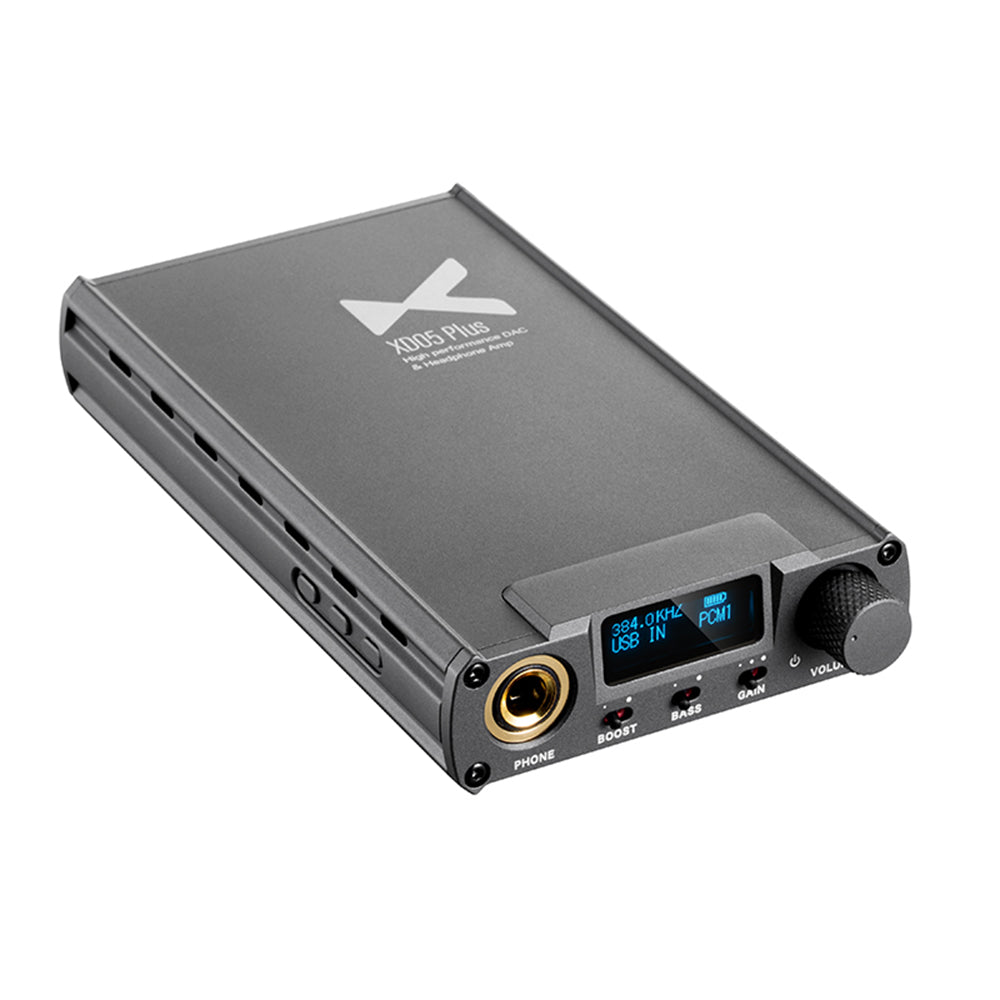

xDuoo XD-05 Plus

32Bit/384 KHz HiFi Portable DSD Headphone Amp DAC

  • Dual Interchangeable Op Amp Design
  • Adopts XMOS XU208 USB Audio Chip and AK4493EQ DAC Chip
  • Supports USB/Coaxial/Optical/Aux in
  • 1000mW output power @32ohms loads
  • Optional Bluetooth Bundle with XD-05BL Pro
Regular price $289.00
Sale price $289.00 Regular price
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
  • Estimated Delivery:Oct 18 - Oct 22

  • Free Standard Shipping & Returns On all orders. Check if your country applies.

Xduoo XD-05 Plus XD-05 Basic_DAC_Amp

xDuoo XD-05 Plus

Latest Chip

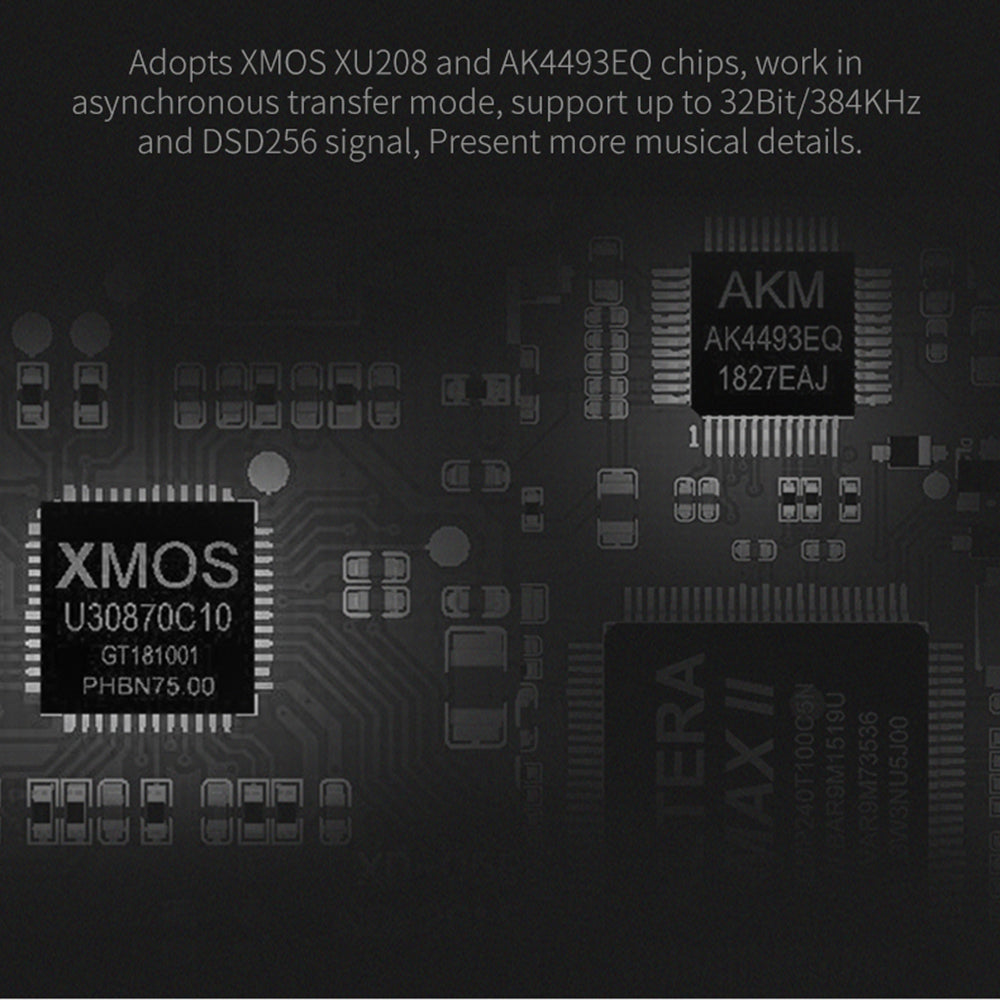

xDuoo XD-05 Plus Adopts XMOS XU208 USB Audio Chip and AK4493EQ DAC Chip, which works in asynchronous transfer mode, supports 32Bit/384Khz and DSD 256, presenting more music details.

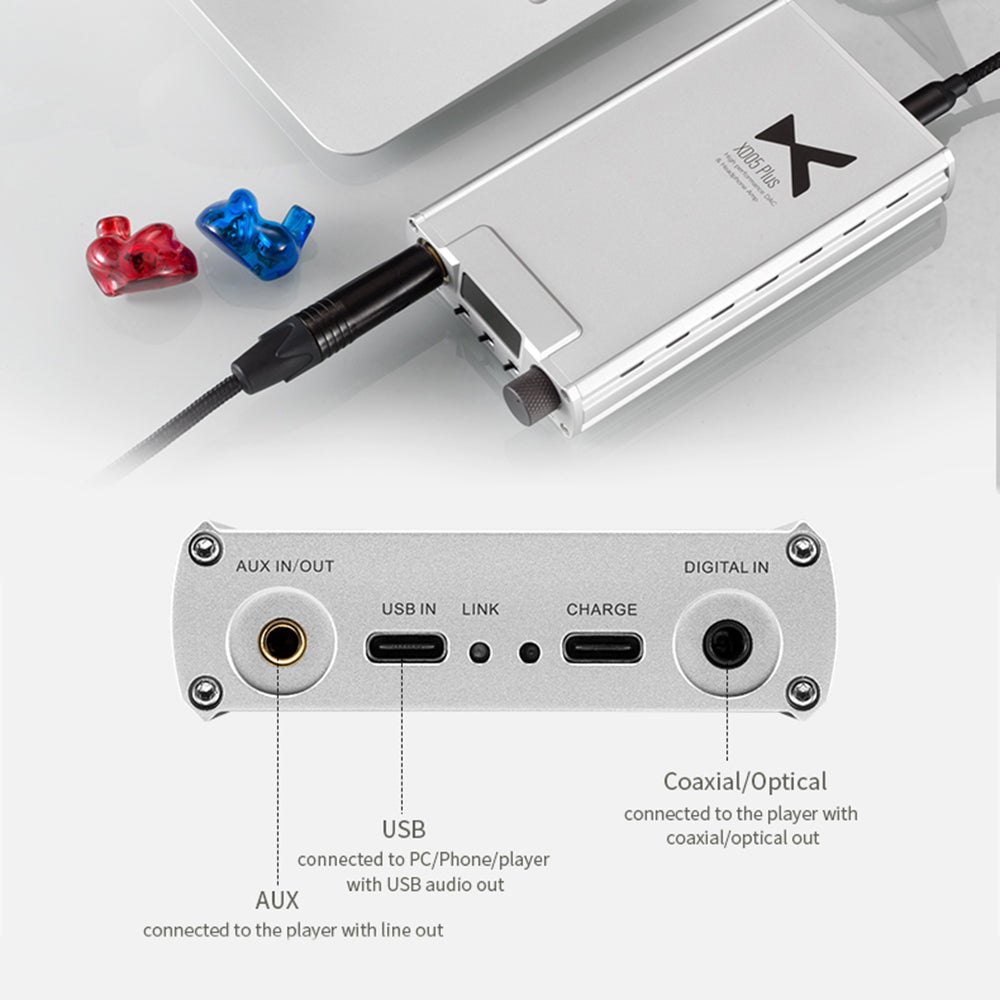

Multiple Audio Inputs

Supports USB/Coaxial/Optical/Aux in, the headphone amplifier could be connected with various multimedia devices. Besides, all inputs support DSD.

Interchangeable Dual Opamp

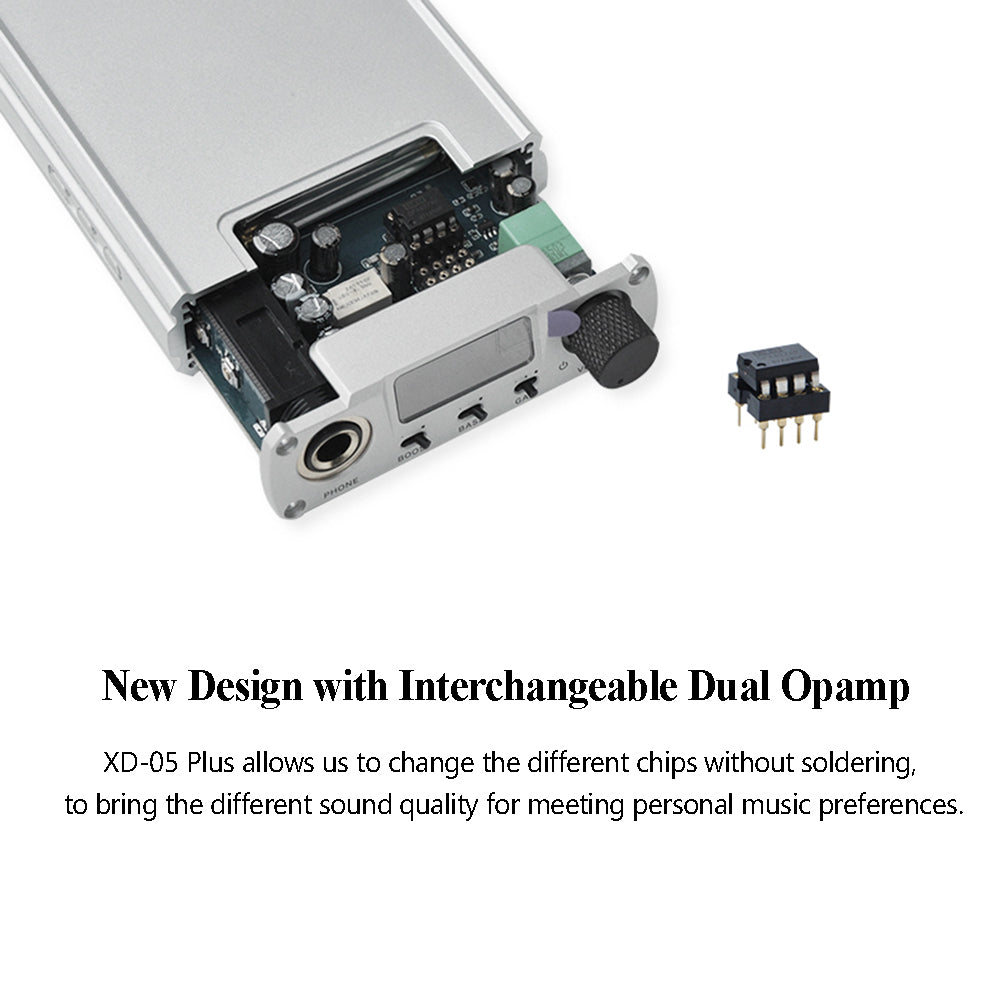

New design with Interchangeable Dual Opamp - XD-05 Plus allows us to change the different chips without soldering, to bring the different sound quality for meeting personal music preferences.

More Powerful Output

Compared with XD-05, XD-05 plus has 1000mW output power @32ohms loads, easily driving higher impedance headphones.

Free Standard Shipping

We Offer FREE Standard Shipping on all orders to Most of the World*

1 Year Warranty

Your Headphones, IEM's, AMPs and DACs, are covered by a warranty against factory defects.

Authentic Products

HiFiXAudio is an official distributor of the brands we carry. All products are genuine.

Compliant operating systems
Windows XP/7/8/10, Mas OS X, IOS, Android
DAC chip
AK4493EQ
USB chipset
XMOS XU208
Output power
1000mW at 32 ohms
Frequency response (amp)
10Hz~100kHz (±0.5 dB)
Frequency response (USB/SPDIF)
20Hz~20kHz (±0.5 dB)
THD+ N (USB/SPDIF in)
0.0016% at 1kHz
THD + N (aux in)
0.0009% at 1kHz
Earphone Interface
0.78mm 2pin
S/N
117dB
Crosstalk
≥75dB
Battery
3.8V / 5000mAh
Battery life
≥13 hours (USB in), ≥21 hours (SPDIF in), ≥40 hours (aux in)
USB (PCM)
16–32bit / 44.1–384kHz
DSP
DOP / NATIVE mode, DSD64–256 (1bit / 2.8M–11.2M)
DXD
24–32bit / 352.8K–384kHz
OPT/COA (PCM)
16–24bit / 44.1–192kHz
DSD
1bit / 2.82 Mhz (DOP)

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Anonymous
The one to beat

… at this price point. You’d have to move up to the iFi Signature (which costs $500 more) to get something comparable - functional and powerful. Highly recommended as a budget portable dac/amp solution.

T
Tomas Gjerstad
Lift your Adio to new heights!

Adding this between your IEM's or headset and device you are listening from. Especially frim a source that has no built-in amp like mobile phone. You will lift your audio experience by a mile with this guaranteed. At least for my experience, I simply cannot praise it enough. Highly recommended it.
