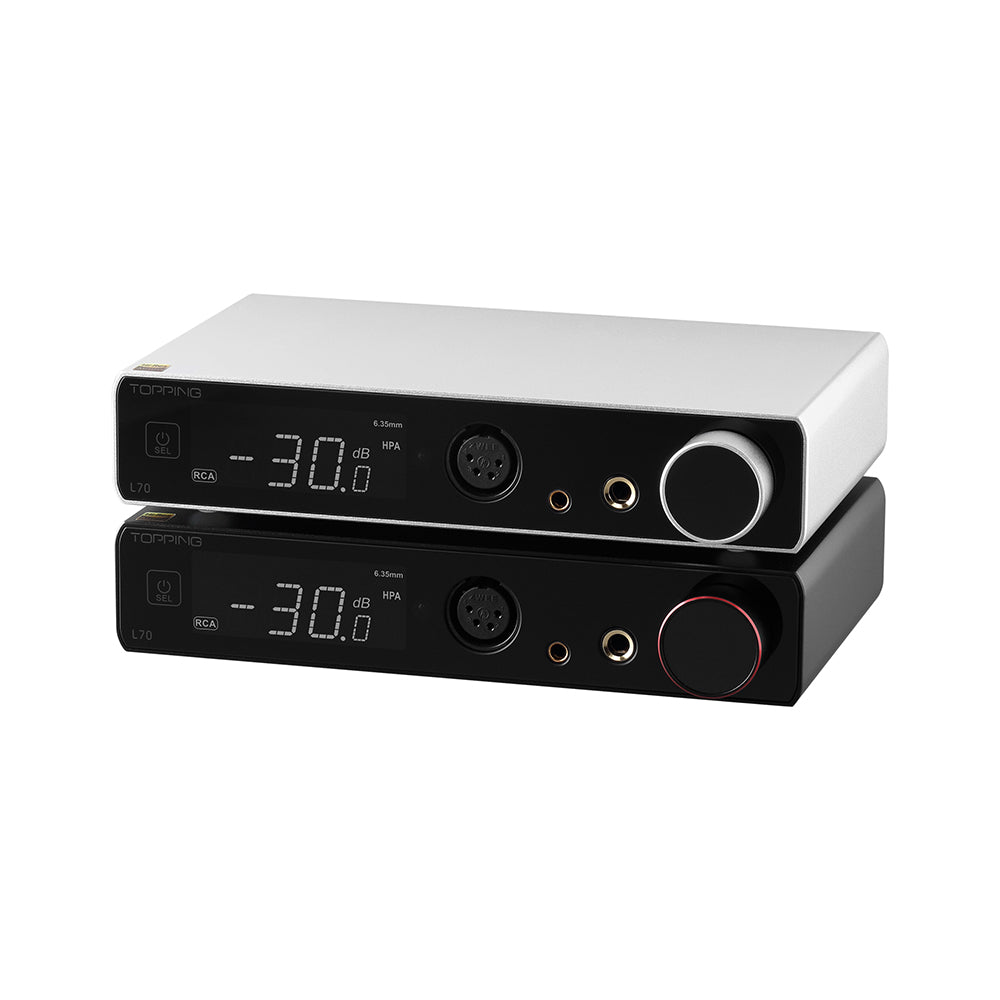

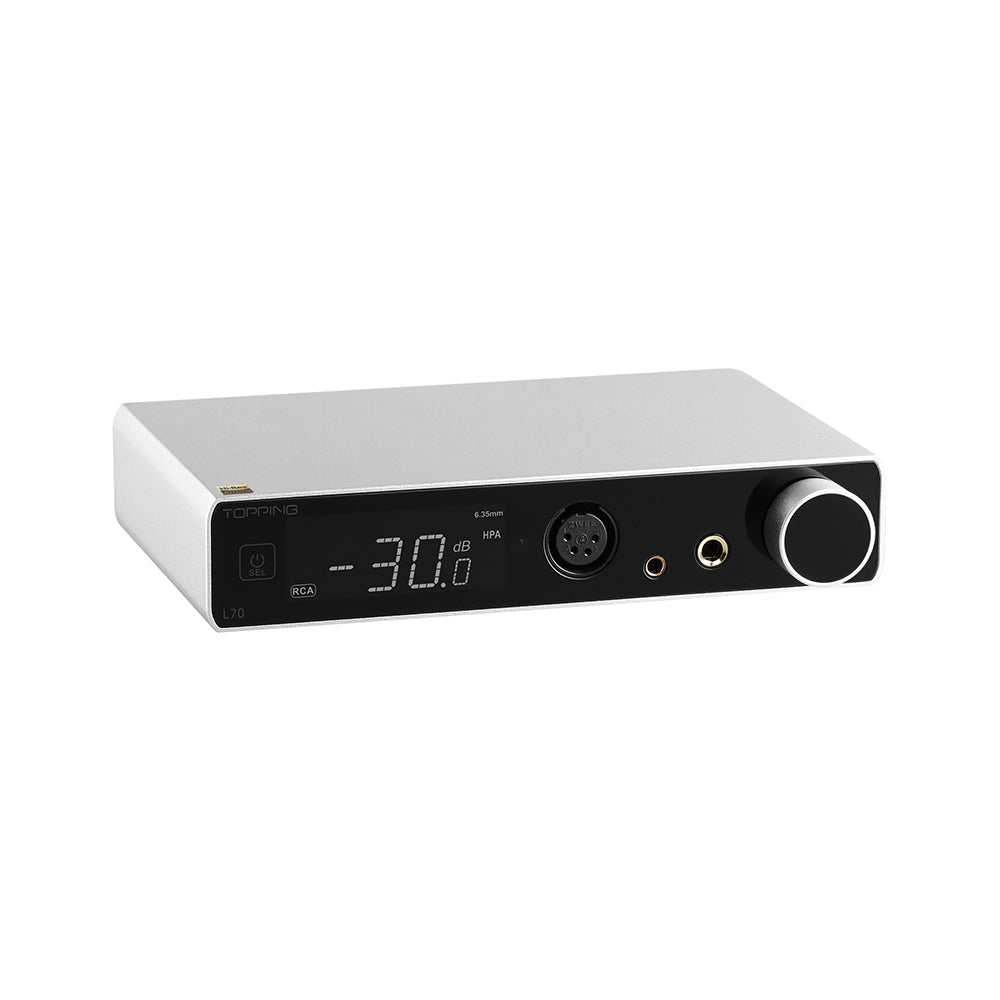

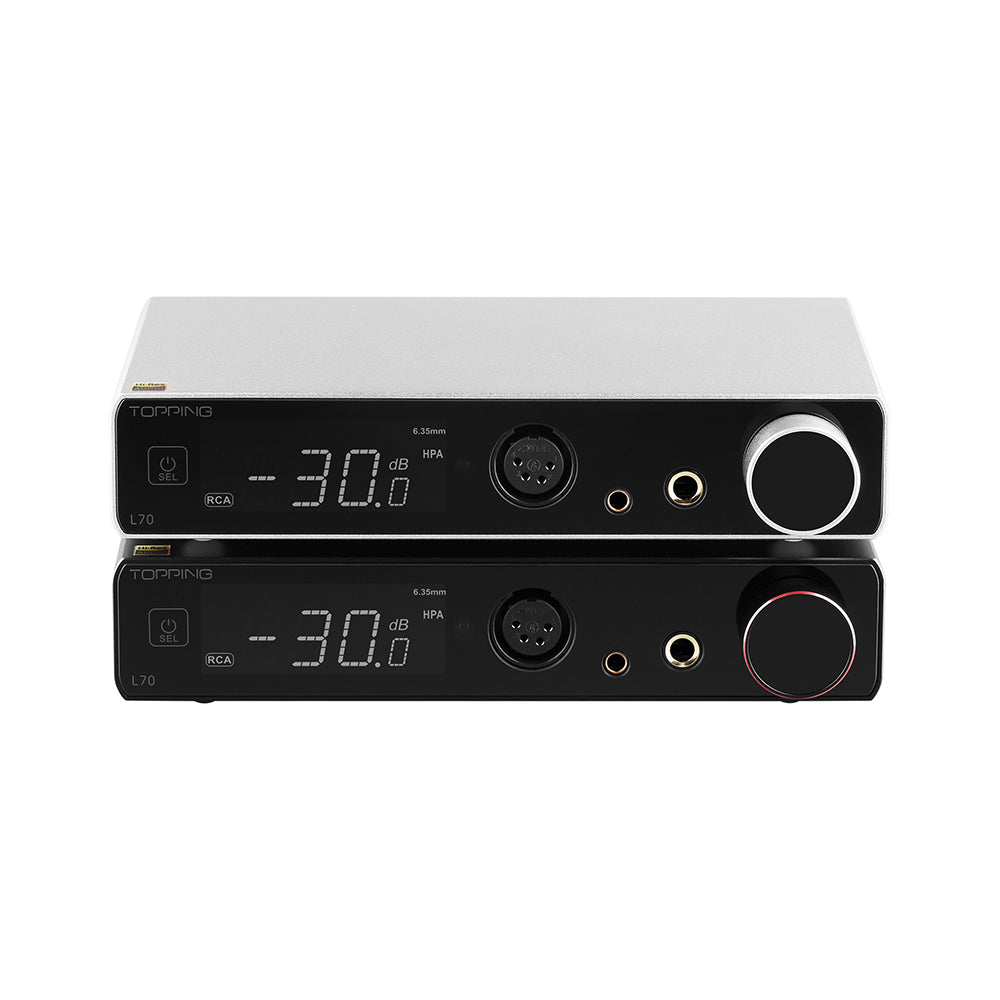

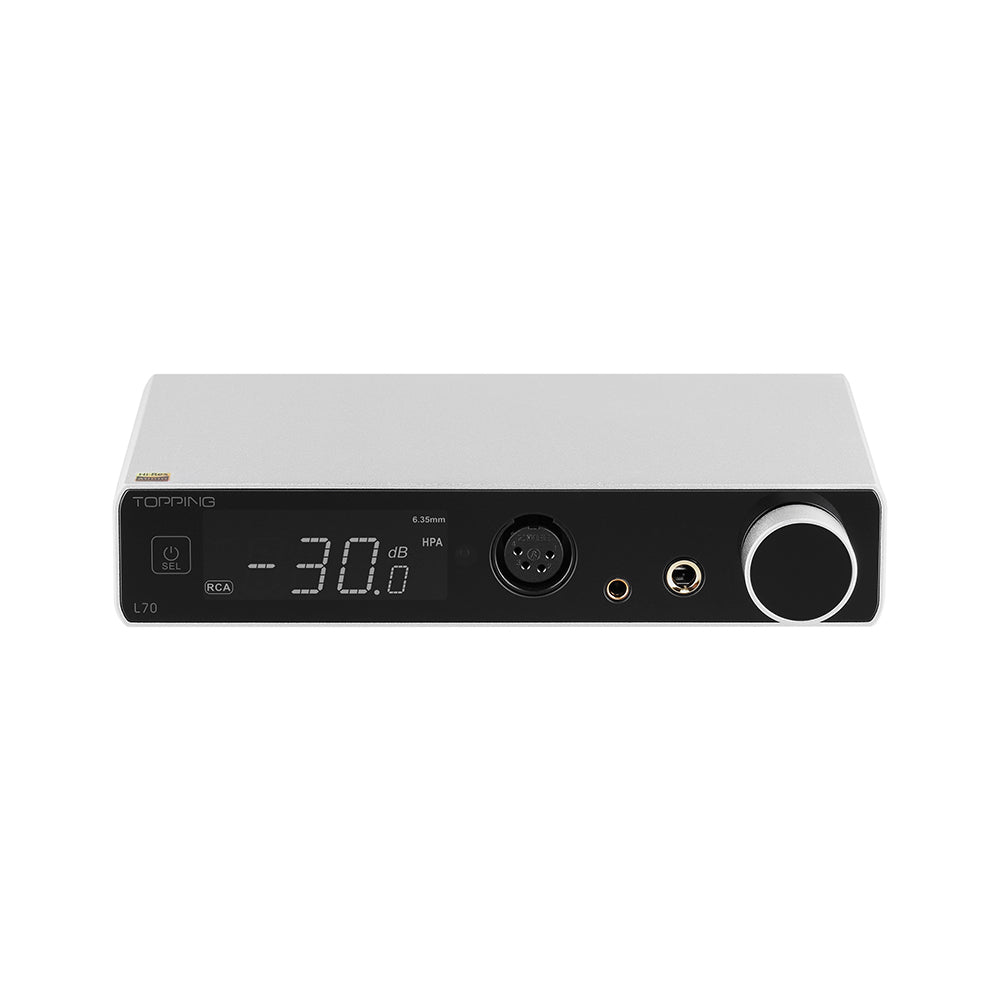

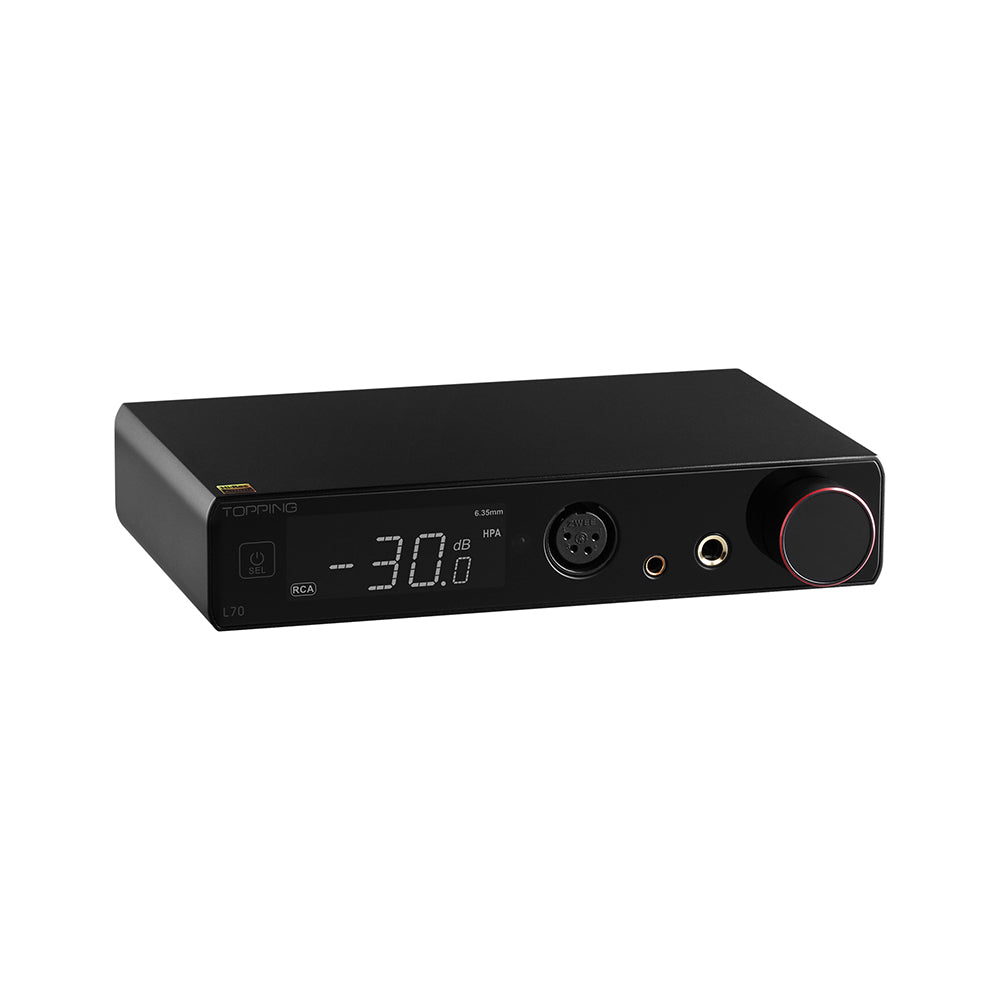

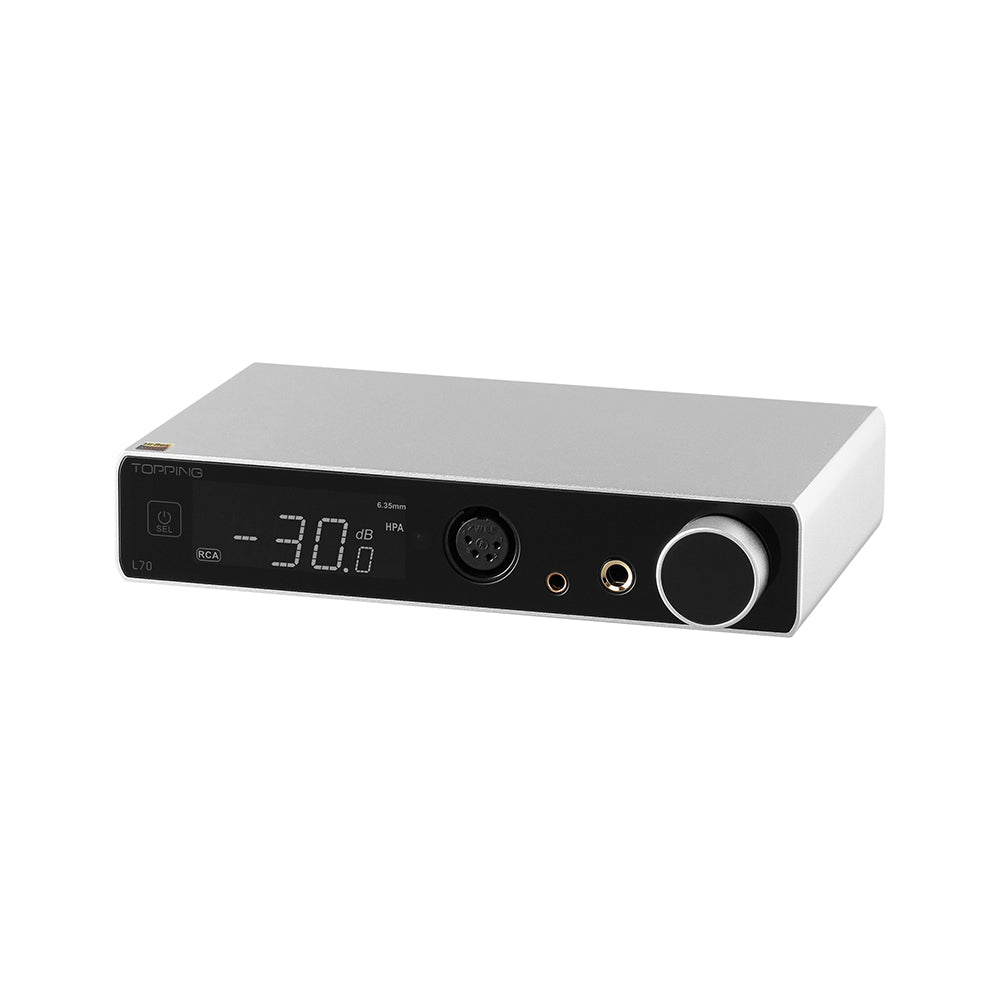

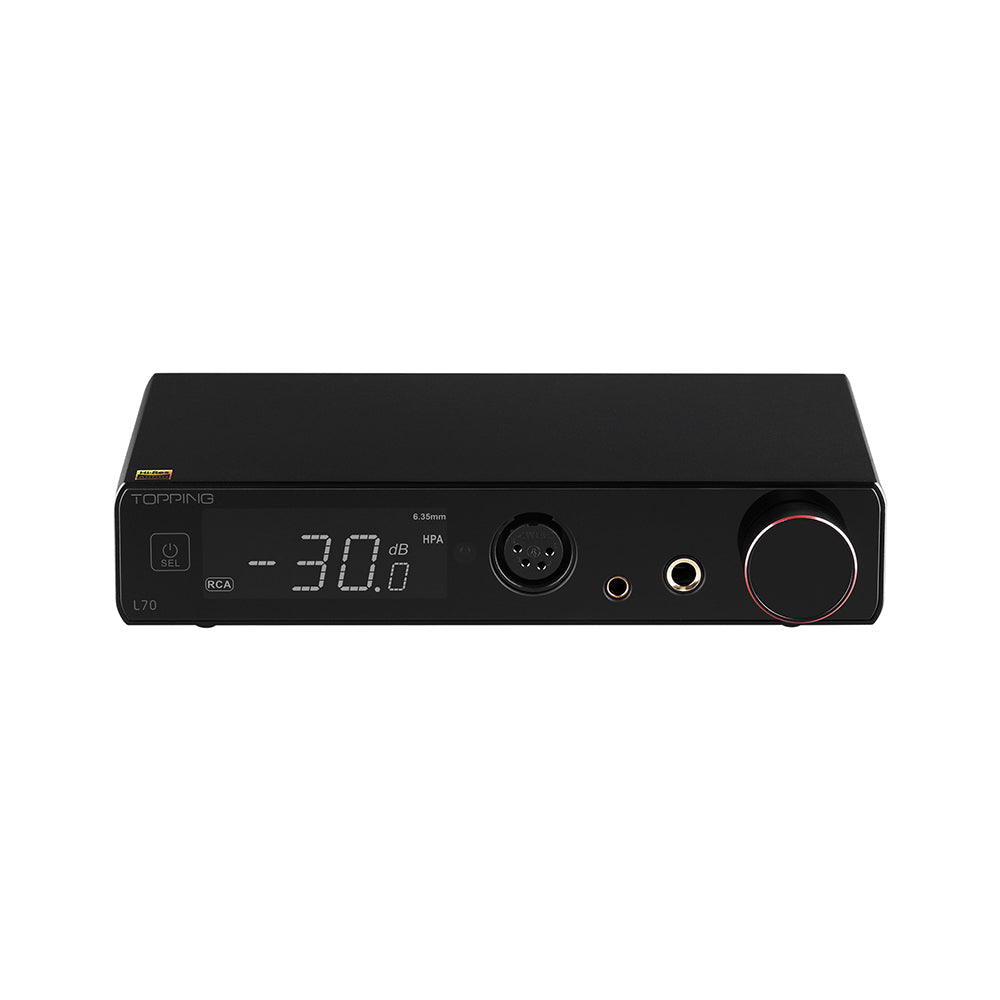

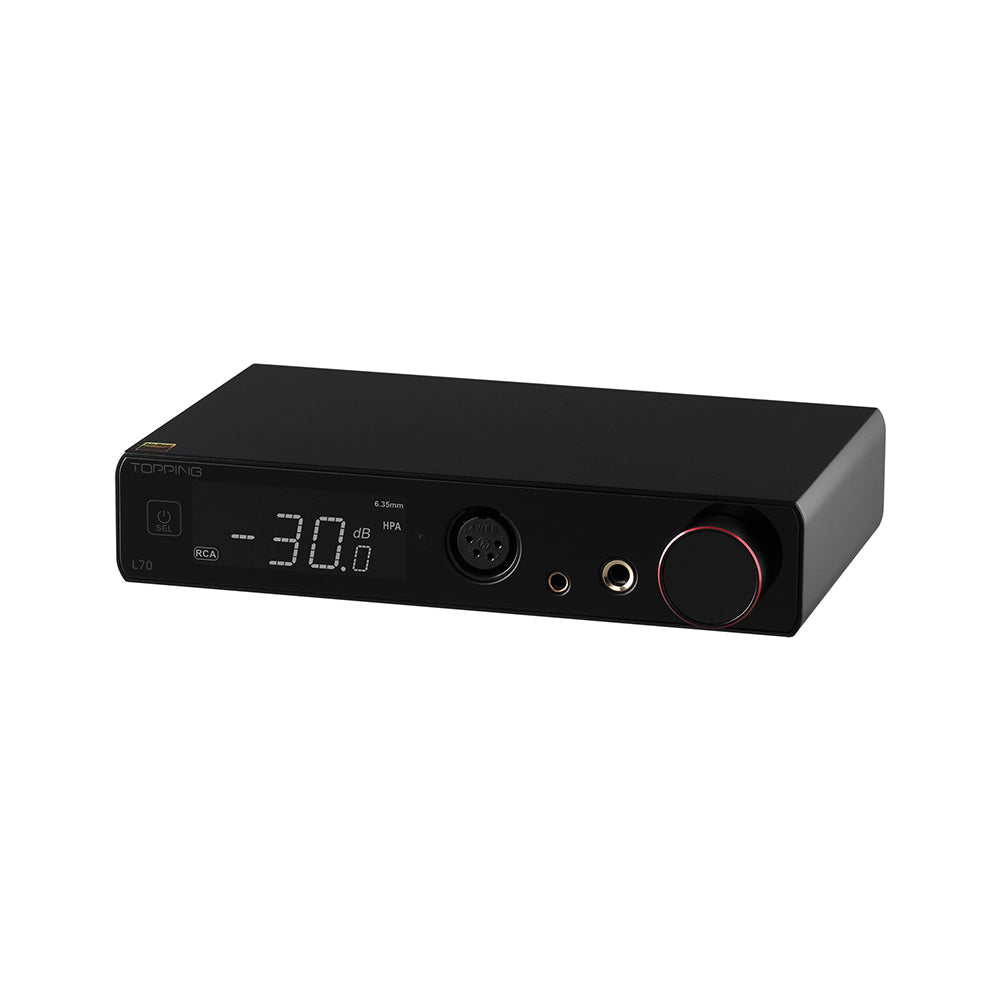

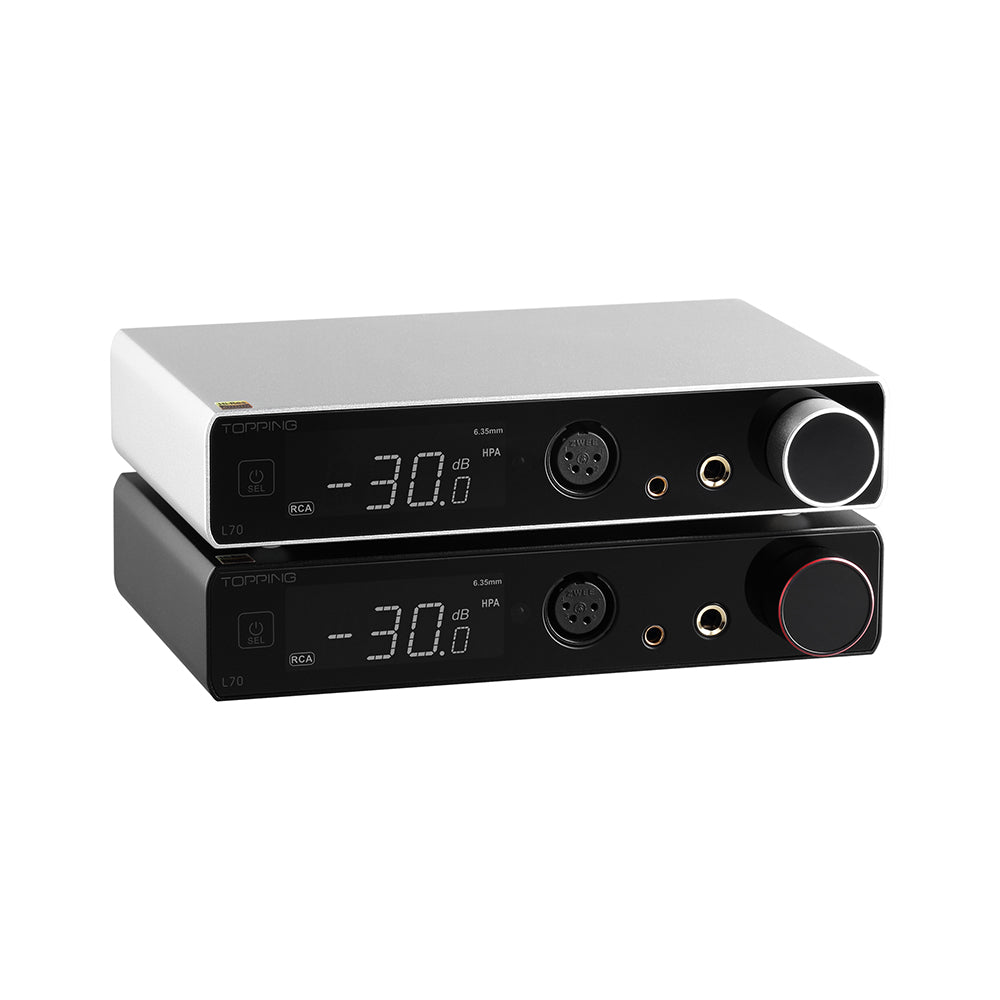

TOPPING L70
Full Balanced NFCA Dual Gain Settings Headphone Amplifier
- Ultra-High Performance NFCA Modules
- 12V Trigger interface
- Powerful Output Ports with Low Noise and Low Impedance
- Dual Gain Setting Options
- Customize volume control
-
Estimated Delivery:Oct 21 - Oct 25
-
Free Standard Shipping & Returns On all orders. Check if your country applies.
TOPPING L70
Ultra-High Performance NFCA Modules
Adopting the same NFCA module with A90, TOPPING L70 utilizes a voltage current hybrid feedback architecture along with UHGF(Ultra High Gain Feedback) technology to provide excellent DC and AC performance，ultra-low THD+N and absurdly high dynamic range of 146dB. Even more, high output current drive capability, ultra-low output impedance and the ultra-low noise of 0.3uV which is miles ahead of the competition provide sufficient guarantee for driving headphones with various characteristics, so that high-fidelity music can be vividly performed on different headphones.
12V Trigger interface
The L70 is equipped with 12V Trigger in & out interface. With only one easy-to-obtain 3.5mm to 3.5mm cable, the L70 can be turned on and off synchronously with other devices equipped with a 12V Trigger interface.
Powerful Output Ports with Low Noise and Low Impedance
Compatible with almost all kinds of headphones, TOPPING L70 features high output voltage, high output current, low noise, and low output impedance. In this case, high output voltage can easily drive high impedance headphones. High output current allows low-sensitivity headphones to obtain enough power. Low noise allows high-sensitivity IEMs to not suffer from any background noise. The low output impedance will not bring unnecessary effect on FR when driving low-impedance headphones. It is worth mentioning that different headphones can be easily driven by the L70.
Dual Gain Setting Options
L70 features two gain settings to meet the needs of different headphones from low-sensitivity full-sized over-ears to high-sensitivity IEMs. With the help of extremely low noise 0.3uV, even IEMs will not hear any background noise.
Customize volume control
L70 utilizes a R2R volume control composed of relays and resistor networks, bringing the advantages of precise control, longevity, complete channel balanced and remote control. L70 can also memorize the volume and gain for eight output settings. This device can be adapted more personalized when connecting different earphones and other devices, which greatly improves the convenience of use.
Free Standard Shipping
We Offer FREE Standard Shipping on all orders to Most of the World*
1 Year Warranty
Your Headphones, IEM's, AMPs and DACs, are covered by a warranty against factory defects.
Authentic Products
HiFiXAudio is an official distributor of the brands we carry. All products are genuine.
THD+N @1kHz (A-wt):
<0.000060% @Output=500mw(32Ω)
<0.000055% @Output=80mw(300Ω)
THD @20-20kHz (90kBw):
<0.00008% @Output=500mw(32Ω)
<0.00007% @Output=80mw(300Ω)
SNR @MAX OUT 1kHz (A-wt): 143dB
Dynamic Range @1kHz(A-wt): 146dB
Frequency Response: 10Hz-100kHz(±0.1dB)
Output Level: 26Vpp
AP measured noise level (A-wt):
<0.7uvrms @G=L
<1.2uVrms @G=H
Actual noise level*(A-wt):
<0.3uVrms @G=L
<1.1uVrms@G=H
Channel Crosstalk @1kHz: -104dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 0dB@G=L
13.8dB @G=H
Output Impedance: <0.1Ω
Output Power:
3500mW x 2@16Ω THD+N<0.1%
2300mW x2 @32Ω THD+N<0.1%
1200mW x2 @64Ω THD+N<0.1%
290mW x 2@300Ω THD+N<0.1%
Load Impedance: >8Ω
BAL IN/SE OUT
THD+N @1kHz (A-wt):
<0.000070% @Output=500mw(32Ω)
<0.000065% @Output=80mw(300Ω)
THD @20-20kHz (90kBw):
<0.00015% @Output=500mw(32Ω)
<0.00015% @Output=80mw(300Ω)
SNR @MAX OUT 1kHz (A-wt): 138dB
Dynamic Range @1kHz(A-wt): 138dB
Frequency Response: 10Hz-100kHz(0.5dB)
Output Level: 26Vpp
AP measured noise level (A-wt):
<0.7uvrms @G=L
<1.2uVrms @G=Hv
Actual noise level*(A-wt):
<0.3uVrms @G=L
<1.1uVrms@G=H
Channel Crosstalk @1kHz: -104dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 0dB@G=L
13.8dB @G=H
Output Impedance: <0.1Ω
Output Power:
3500mW x 2@16Ω THD+N<0.1%
2300mW x2 @32Ω THD+N<0.1%
1200mW x2 @64Ω THD+N<0.1%
290mW x 2@300Ω THD+N<0.1%
Load Impedance: >8Ω
SE IN/BAL OUT
THD+N @1kHz (A-wt):
<0.000060% @Output=2000mw(32Ω)
<0.000055% @Output=320mw(300Ω)
THD @20-20kHz (90kBw):
<0.00009% @Output=2000mw(32Ω)
<0.00008% @Output=320mw(300Ω)
SNR @MAX OUT 1kHz (A-wt): 146dB
Dynamic Range @1kHz(A-wt): 146dB
Frequency Response: 10Hz-100kHz(0.1dB)
Output Level: 52Vpp
AP measured noise level (A-wt):
<0.9uvrms @G=L
<2.2uVrms @G=H
Actual noise level*(A-wt):
<0.7uVrms @G=L
<2.2uVrms@G=H
Channel Crosstalk @1kHz: -120dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 6.0dB@G=L
19.8dB @G=H
Output Impedance: <0.2Ω
Output Power:
6000mW x 2@16Ω THD+N<0.1%
7500mW x2@32Ω THD+N<0.1%
4700mW x2 @64Ω THD+N<0.1%
1150mW x 2@300Ω THD+N<0.1%
600mW x2 @600Ω THD+N<0.1%
Load Impedance: >8Ω
BAL IN/BAL OUT
THD+N @1kHz (A-wt):
<0.000070% @Output=2000mw(32Ω)
<0.000065% @Output=320mw(300Ω)
THD @20-20kHz (90kBw):
<0.00020% @Output=2000mw(32Ω)
<0.00015% @Output=320mw(300Ω)
SNR @MAX OUT 1kHz (A-wt): 139dB
Dynamic Range @1kHz(A-wt): 139dB
Frequency Response: 10Hz-100kHz(0.5dB)
Output Level: 52Vpp
AP measured noise level (A-wt):
<0.9uvrms @G=L
<2.2uVrms @G=H
Actual noise level*(A-wt):
<0.7uVrms @G=L
<2.2uVrms@G=H
Channel Crosstalk @1kHz: -120dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 6.0dB@G=L
19.8dB @G=H
Output Impedance: <0.2Ω
Output Power:
6000mW x 2@16Ω THD+N<0.1%
7500mW x2@32Ω THD+N<0.1%
4700mW x2 @64Ω THD+N<0.1%
1150mW x 2@300Ω THD+N<0.1%
600mW x2 @600Ω THD+N<0.1%
Load Impedance: >8Ω
THD+N @1kHz (A-wt): <0.000055%
THD @20-20kHz (90kBw): <0.00007%
SNR @1kHz (A-wt): 143dB
Dynamic Range @1kHz(A-wt): 143dB
Frequency Response: 10Hz-100kHz(±0.1dB)
Output Level: 26Vpp
AP measured noise level (A-wt):
<0.7uvrms @G=L
<1.2uVrms @G=H
Actual noise level*(A-wt):
<0.3uVrms @G=L
<1.1uVrms@G=H
Channel Crosstalk @1kHz: -104dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 0dB@G=L
13.8dB @G=H
Output Impedance: 20Ω
BAL IN/SE OUT
THD+N @1kHz (A-wt): <0.000060%
THD @20-20kHz (90kBw): <0.00015%
SNR @1kHz (A-wt): 138dB
Dynamic Range @1kHz(A-wt): 138dB
Frequency Response: 10Hz-100kHz(±0.5dB)
Output Level: 26Vpp
AP measured noise level (A-wt):
<0.7uvrms @G=L
<1.2uVrms @G=H
Actual noise level*(A-wt): <0.3uVrms @G=L
<1.1uVrms@G=H
Channel Crosstalk @1kHz: -104dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 0dB@G=L
13.8dB @G=H
Output Impedance: 20Ω
SE IN/BAL OUT
THD+N @1kHz (A-wt): <0.000055%
THD @20-20kHz (90kBw): <0.00008%
SNR @1kHz (A-wt): 146dB
Dynamic Range @1kHz(A-wt): 146dB
Frequency Response: 10Hz-100kHz(±0.1dB)
Output Level: 52Vpp
AP measured noise level (A-wt):
<0.9uvrms @G=L
<2.2uVrms @G=H
Actual noise level*(A-wt):
<0.7uVrms @G=L
<2.2uVrms@G=H
Channel Crosstalk @1kHz: -120dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 6.0dB@G=L
19.8dB @G=H
Output Impedance: 40Ω
BAL IN/BAL OUT
THD+N @1kHz (A-wt): <0.000060%
THD @20-20kHz (90kBw): <0.00015%
SNR @1kHz (A-wt): 139dB
Dynamic Range @1kHz(A-wt): 139dB
Frequency Response: 10Hz-100kHz(±0.5dB)
Output Level: 52Vpp
AP measured noise level (A-wt):
<0.9uvrms @G=L
<2.2uVrms @G=H
Actual noise level*(A-wt):
<0.7uVrms @G=L
<2.2uVrms@G=H
Channel Crosstalk @1kHz: -120dB
Input sensitivity:
9.6vrms @G=L
1.9Vrms @G=H
Gain: 6.0dB@G=L
19.8dB @G=H
Output Impedance: 40Ω
