TOPPING DX1
High-Resolution Support DSD256 PCM384 Decoder Amplifier
- New-Generation AK4493S DAC Chip
- Superb clean performance with Ultra-low distortion
- Supports high-resolution 32-Bit/384kHz PCM and native DSD256
- XMOS high-performance XU208 USB Receiver
- Hi-Res Audio Certified
- Dual Headphone outputs, 6.35mm and 3.5mm
- Plug & Play,No Adapter Required
-
Estimated Delivery:Oct 19 - Oct 23
-
Free Standard Shipping & Returns On all orders. Check if your country applies.

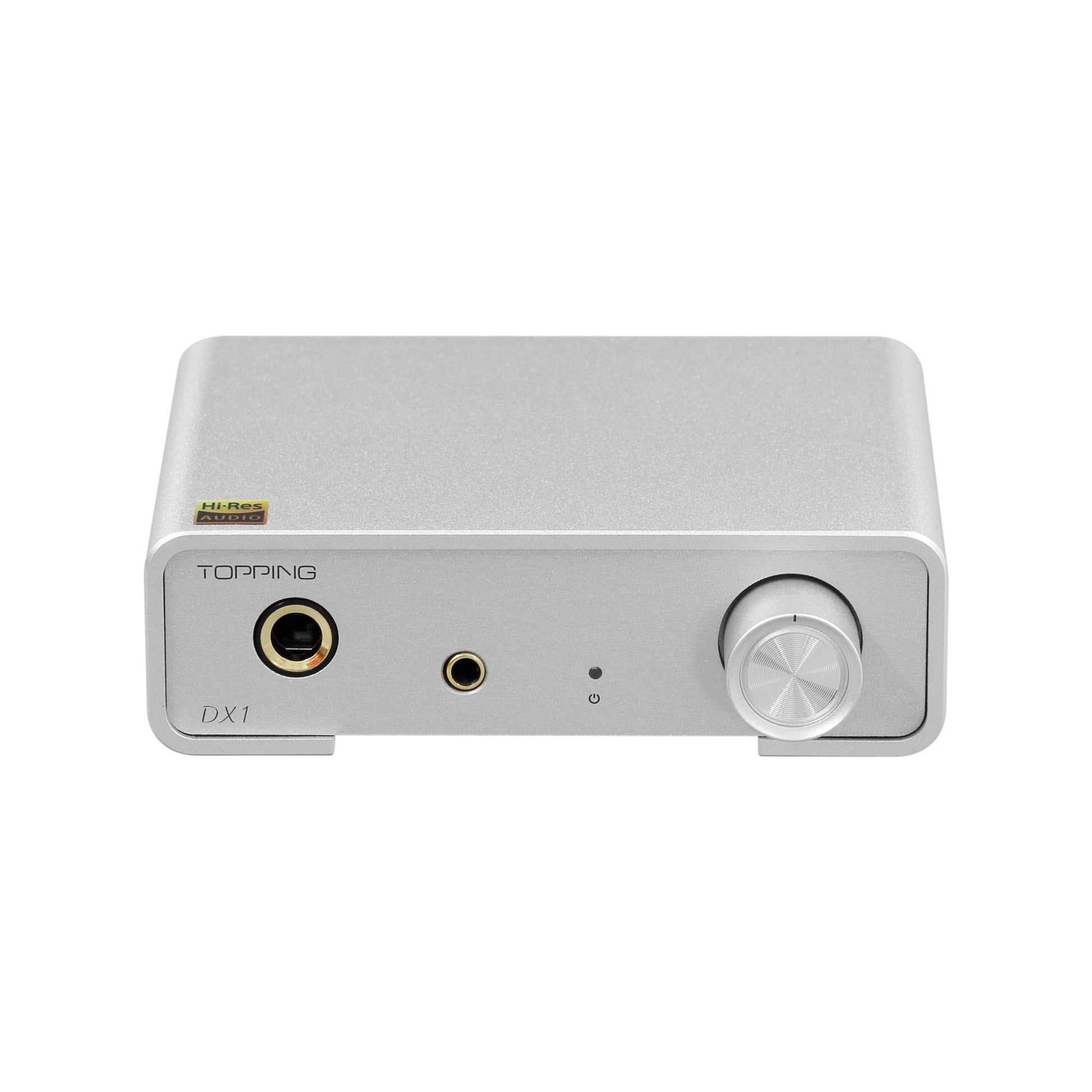

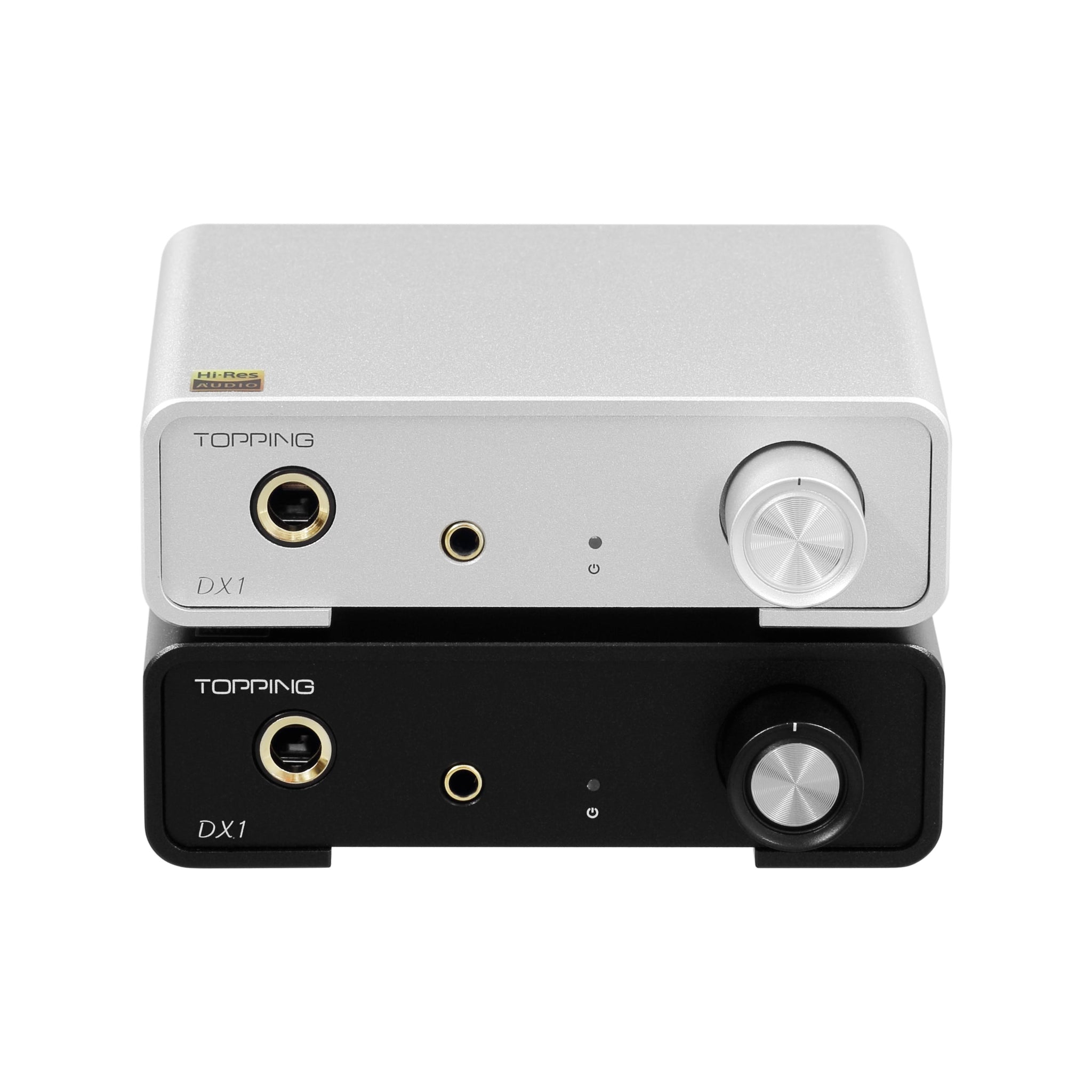

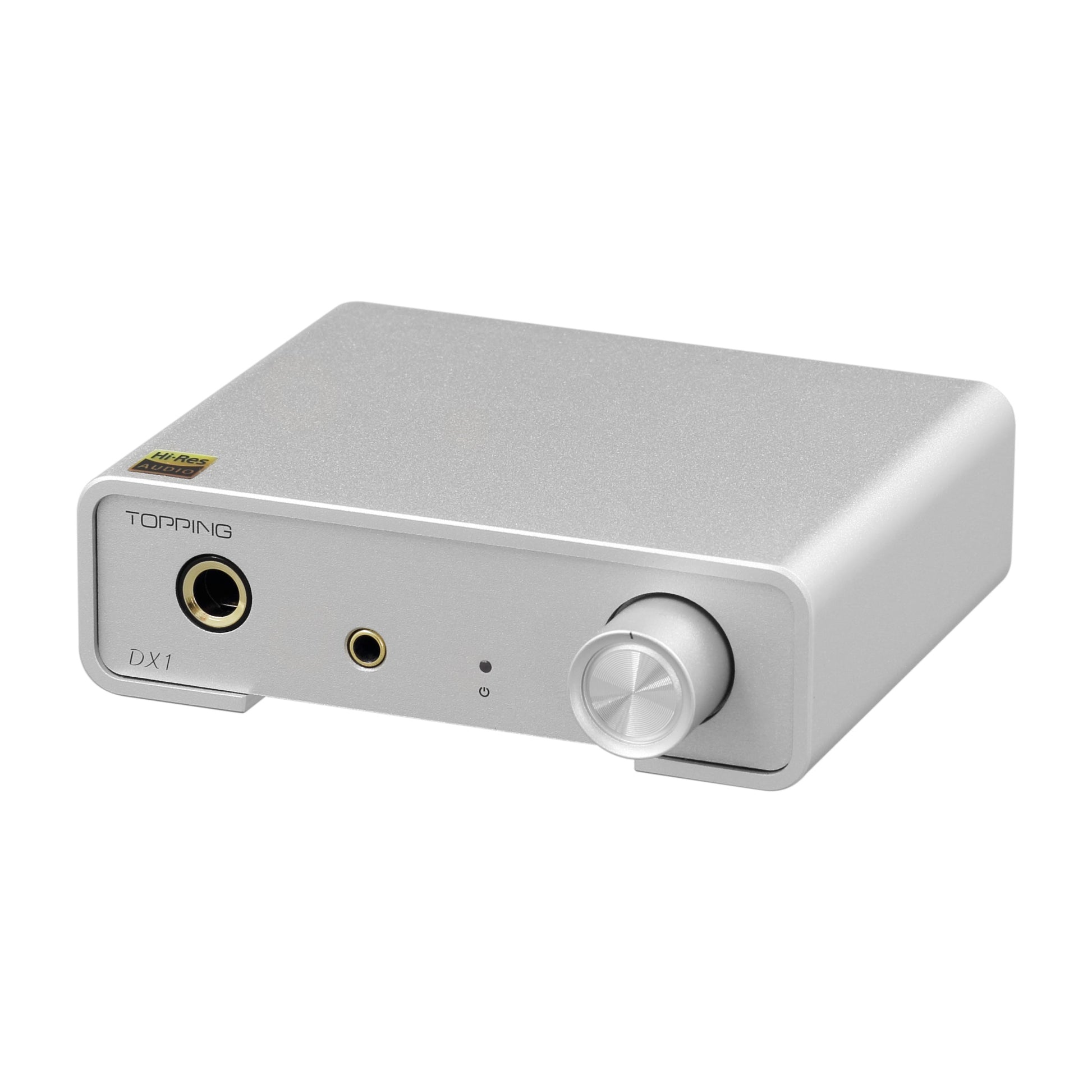

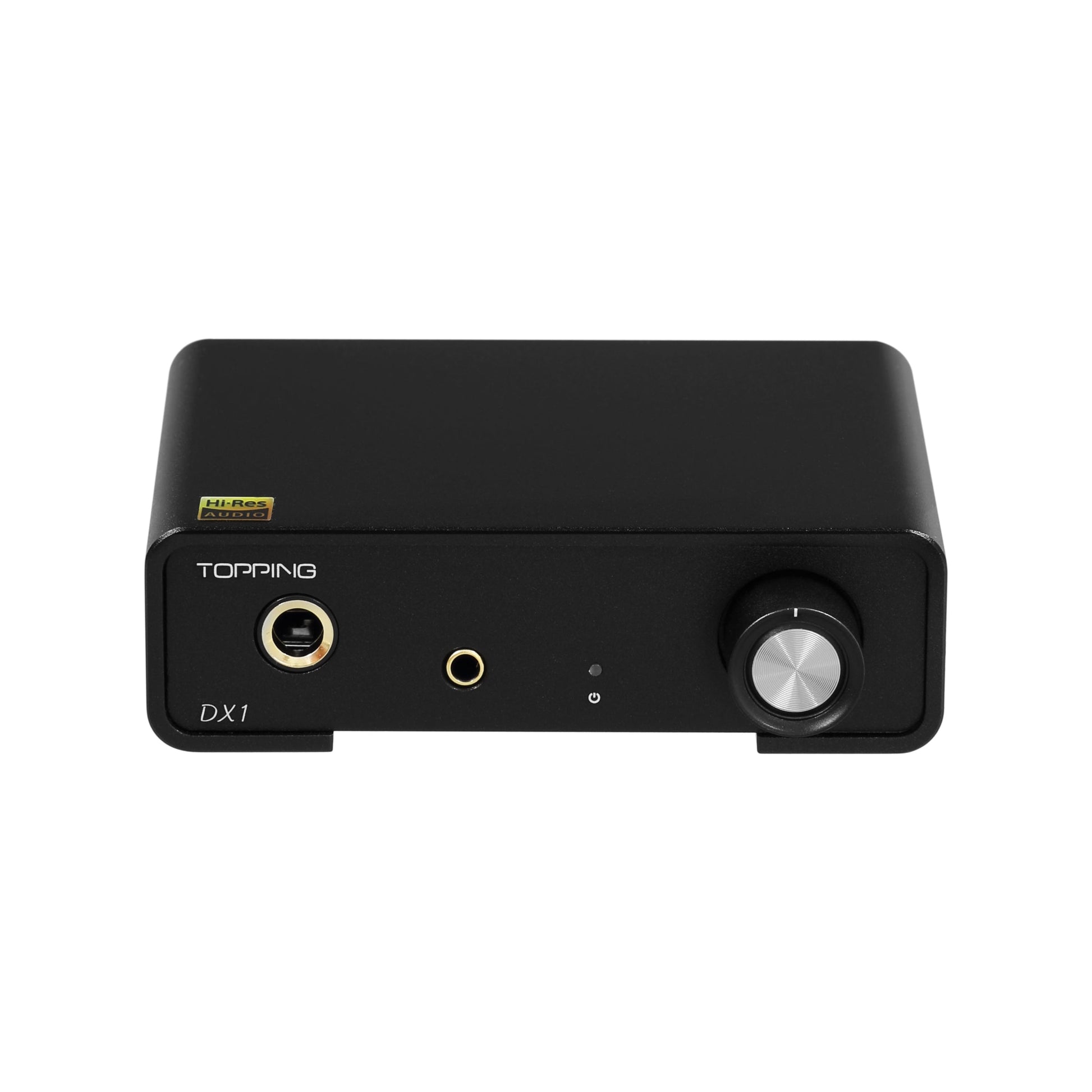

TOPPING DX1
New-Generation AKM DAC Chip
Topping has equipped the latest DX1 with the latest generation AKM DAC chipset. It houses the AK4493S DAC chip from AKM’s Velvet Sound technology, it’s a 32-bit DAC upgraded from the classic AK4493. It helps the DX1 to provide crisp high-resolution audio signal decoding.
High-Resolution Audio Decoding
Topping DX1 is an all-in-one solution for all your Hi-Fi needs. The device supports high-resolution PCM and DSD signal decoding bringing an authentic high-resolution audio experience to your desktop. It has an XMOS XU208 USB receiver chip that provides 32-Bit/384kHz and Native DSD256 signals.
Plug & Play, No Adapter Required
Topping DX1 is widely compatible with a range of desktop devices. It doesn’t require any additional power adapter and works directly off your sources like Windows/Ma/Linux and even Android devices.
Discrete LNRD Circuit
In order to reduce noise from USB power, DX1 features a Discrete LNRD circuit(low noise reference driver). It filters out the noise and interference of USB 5V power and provides a clean and stable power supply to the device.
Compact Size, Powerful Output
Topping DX1 is a powerful device, it packs a punch in its compact size. It has a powerful output rating of up to 280mW @ 32Ω of load. It has two level gain modes, Low and High. Easily power your IEMs and HPs with the DX1.
Free Standard Shipping
We Offer FREE Standard Shipping on all orders to Most of the World*
1 Year Warranty
Your Headphones, IEM's, AMPs and DACs, are covered by a warranty against factory defects.
Authentic Products
HiFiXAudio is an official distributor of the brands we carry. All products are genuine.
Product type: DAC and headphone amplifier
DAC chi: AKM AK4493S

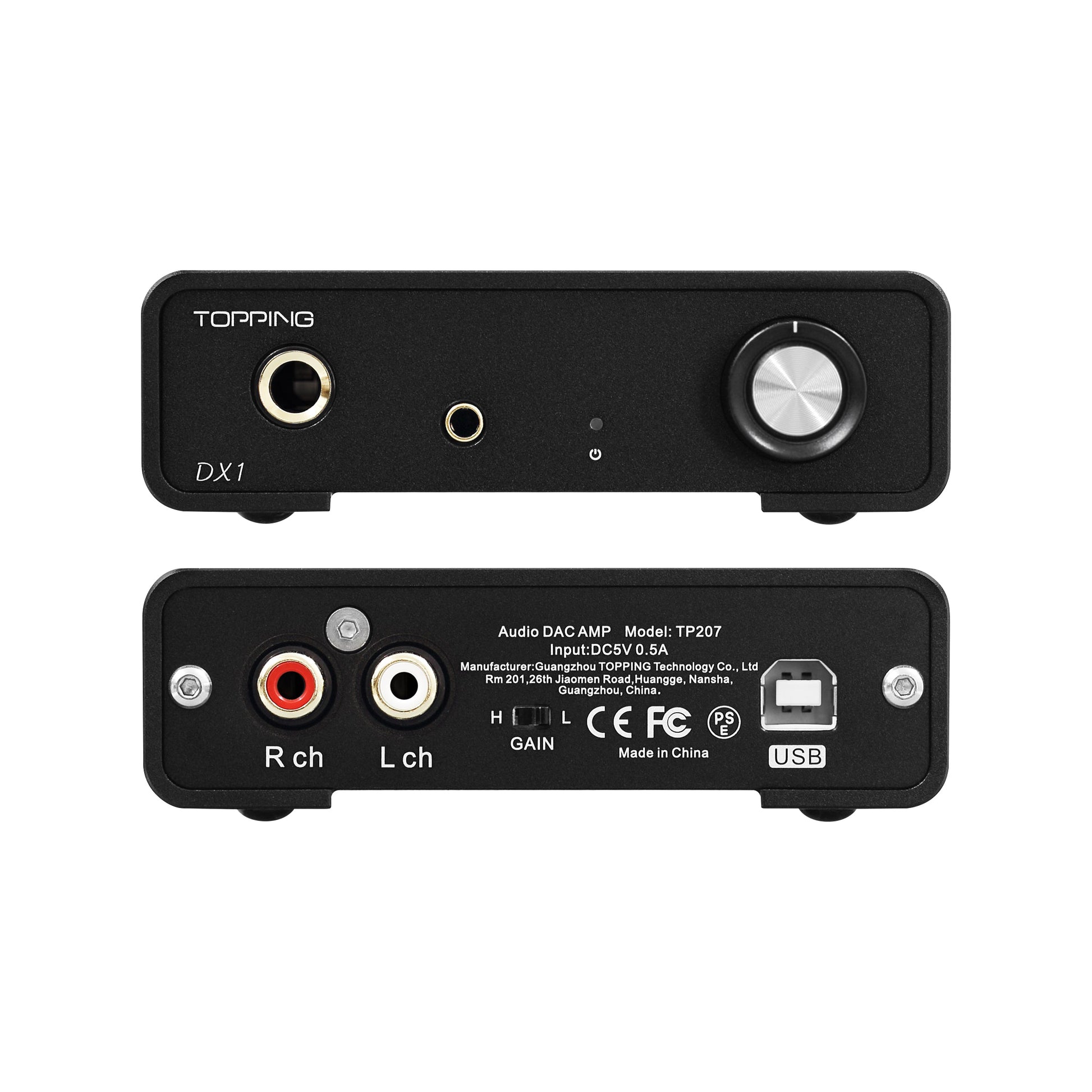

Input: 1x USB-B
Outputs:
1x Stereo RCA line out (fixed volume)
1x Jack 3.5mm headphone output
1x Jack 6.35mm headphone output
Supported sampling rates:
PCM up to 32bit 384kHz
Native DSD up to DSD256
DSD DoP up to DSD128
THD @ 20Hz-20kHz, 90kBw:< 0.0006%
SNR @ 1kHz, A-Weighted:120dB
Dynamic range @ 1kHz, A-Weighted:120dB
Frequency repsonse:
20Hz - 20kHz (±0.3dB)
20Hz - 40kHz (±0.7dB)
Output level: 2.0Vrms @ 0dBFS
Crosstalk @ 1kHz:-112dB
Channel balance: 0.3dB
Output impedance:22Ω
< 0.0003% @ 200mW, 32Ω
< 0.0002% @ 45mW, 300Ω
THD @ 20Hz-20kHz, 90kBw:
< 0.003% @ 200mW, 32Ω
< 0.001% @ 45mW, 300Ω
SNR @ Max Out, 1kHz, A-Weighted:118dB
Dynamic range @ 1kHz, A-Weighted:118dB
Frequency response:
20Hz - 20kHz (±0.3dB)
20Hz - 40kHz (±0.7dB)
Output level:
2.2Vpp @ G=L
11Vpp @ G=H
Noise @ A-Weighted:< 1.0µVrms
Crosstalk @ 1kHz:-86dB
Gain:
-2dB (Vrms/FS) @ G=L
12dB (Vrms/FS) @ G=H
Output impedance :< 0.5Ω
Output power:
2x 280mW @ 32Ω, THD+N <0.1%
2x 190mW @ 64Ω, THD+N <0.1%
2x 51mW @ 300Ω, THD+N <0.1%
Load impedance :> 8Ω
1x USB-B cable
