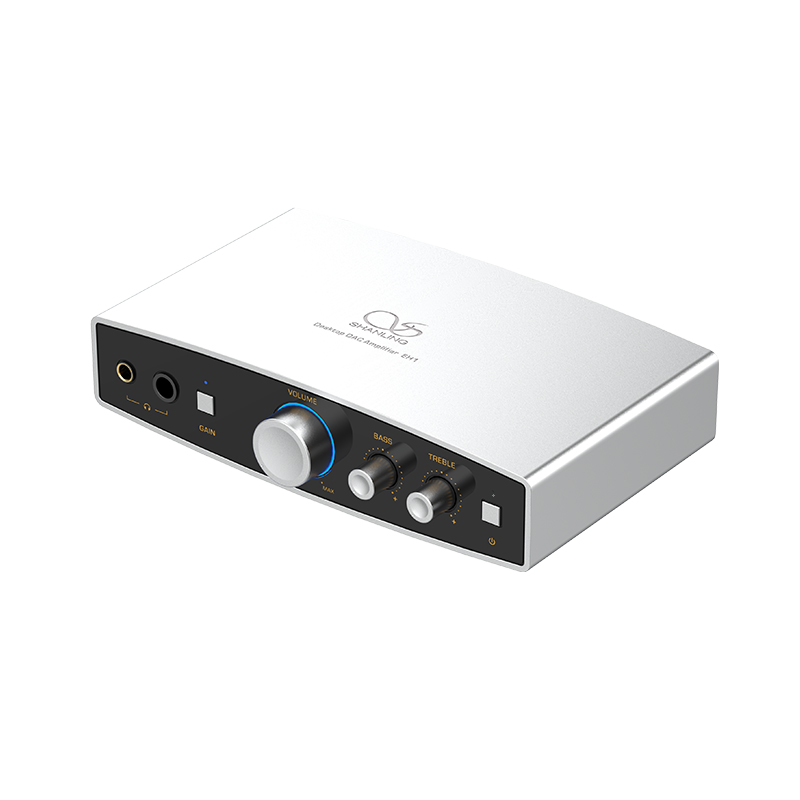

Shanling EH1
Compact Desktop DAC & Headphone Amplifier
- Cirrus Logic CS43198 DAC
- Dual SGM8262 Headphone Amplifiers
- Up to 1015 mW @ 32 Ohm Output Power
- Treble (±10dB) & Bass (±6dB) Tone Control
- Hi-Res 32 bit / 768 kHz & DSD512
- USB Digital Input
- 6.35mm & 4.4mm Headphone Outputs
- RCA Output with Switchable Line-out / Pre-out Mode
- SPDIF Coaxial Output
- Powered by USB-C or DC Power
- New Curved Design, Aluminum Construction
-
Estimated Delivery:Oct 18 - Oct 22
-
Free Standard Shipping & Returns On all orders. Check if your country applies.
Shanling EH1
Minimalist Design
The Shanling EH1 embodies minimalist audio design with its sleek, curved aluminum body. Without screens or complicated interfaces, it features just a few buttons and dials, ensuring an intuitive user experience.
High-Quality Audio Performance
Equipped with a Cirrus Logic CS43198 DAC and dual SGM8262 headphone amplifiers, the EH1 delivers exceptional audio clarity and speed. It provides up to 1015 mW output power at 32 Ohm, ensuring that every note is rendered with precision. The device supports high-resolution audio formats, including 32-bit/768 kHz and DSD512, making it a perfect companion for audiophiles.
Customizable Sound
The EH1 features dedicated Treble and Bass controls, allowing you to easily adjust your listening experience to suit your preferences. Whether you prefer a bit more punch in the low end or sparkling highs, this compact amplifier lets you tailor your sound without the need for complex settings.
Versatile Connectivity
With both USB-C and 5V DC power options, the EH1 is versatile enough to fit seamlessly into any setup. It includes 6.35mm and 4.4mm headphone outputs for compatibility with various headphones, as well as an RCA output that can be switched between Line-out and Pre-out modes. Additionally, the SPDIF coaxial digital output enhances connectivity options, making it a powerful tool for any audio enthusiast.
Free Standard Shipping
We Offer FREE Standard Shipping on all orders to Most of the World*
1 Year Warranty
Your Headphones, IEM's, AMPs and DACs, are covered by a warranty against factory defects.
Authentic Products
HiFiXAudio is an official distributor of the brands we carry. All products are genuine.
Frequency Response: 20 Hz - 40 kHz (-1.5 dB)
THD+N: 0.007% (A-Weight @ 1 Vrms, High Gain @ 32Ω)
Dynamic Range: 119 dB
Channel Separation: 75 dB
Signal-to-Noise Ratio: 119 dB (A-Weight, High Gain)
Noise: 110 dB
Output Impedance: 0.4Ω
Frequency Response: 20 Hz - 40 kHz (-0.5 dB)THD+N: 0.008% (A-Weight @ 1 Vrms, High Gain @ 32Ω)
Dynamic Range: 119 dB
Channel Separation: 99 dB
Signal-to-Noise Ratio: 119 dB (A-Weight, High Gain)
Noise: 104 dB
Output Impedance: 0.8Ω
Frequency Response: 20 Hz - 40 kHz (-1.2 dB)
THD+N: 0.0007% (A-Weight, High Gain)
Dynamic Range: 123 dB
Channel Separation: 114 dB
Signal-to-Noise Ratio: 122 dB (A-Weight, High Gain)
Noise: 116 dB
